Carte mére gigabyte GA-970A-UD3+ cpu AMD FX 6100 black edition

Description de l'annonce N° 34391 :

Processeur AMD FX 6 core blak edition avec fan original AMD
memoir cache 14 mo total
vites 3.3 GO par core

ram ddr3 1333 2×2 ( 4go ) dual channel

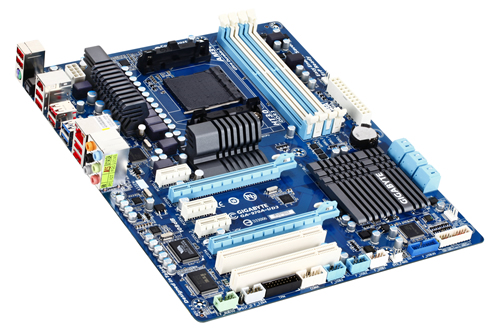

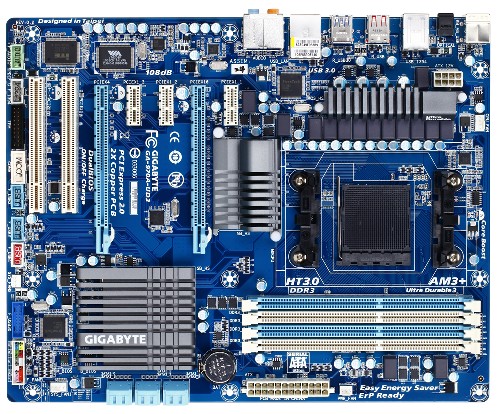

cart mére GIGABYTE GA-970A-UD3

Processeur AM3+ Socket:

Support for AMD AM3+ FX processors
Support for AMD AM3 Phenom™ II processors / AMD Athlon™ II processors

(Please refer « CPU Support List » for more information.)
Hyper Transport

4800 MT/s

Chipset

North Bridge: AMD 970
South Bridge: AMD SB950

Mémoire

4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)

(Please refer « Memory Support List » for more information.)
Audio

Realtek/VIA codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Réseau

1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Port d’expansion

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All PCI Express slots conform to the PCI Express 2.0 standard.)
2 x PCI slots

Technologie Multi-cartes graphiques

Support for AMD CrossFireX™ technology (PCIEX16 and PCIEX4)

Interface de Stockage South Bridge:

6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
Support for RAID 0, RAID 1, RAID5, RAID 10 and JBOD

USB South Bridge:

Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)

2 x Etron EJ168 chips:

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

FireWire VIA VT6308 chip:

Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)

Connecteurs d’entrées/sorties internes

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x IEEE 1394a header
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x clearing CMOS jumper

Connecteur du Panneau Arrière

1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector
1 x IEEE 1394 port
8 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Contrôleur d’Entrée/Sortie

ITE IT8720 chip

Monitorage Matériel

System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 3)

BIOS

2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Fonctionnalités Exclusives

Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 4)
Support for Easy Energy Saver
Support for Smart Recovery
Support for Auto Green
Support for ON/OFF Charge
Support for Cloud OC
Support for 3TB+ Unlock
Support for Q-Share

Logiciels Fournis

Norton Internet Security (OEM version)

Système d’Exploitation

Support for Microsoft Windows 7/ Vista/ XP

Dimensions

ATX Form Factor; 30.5cm x 24.4cm
